Cascadable active taps designed for complex distribution systems. Inbuilt amplifiers at tap outputs reduce tap loss to low value of 3 dB, while keeping trunk loss at minimum. These parts are therefore recommended for installation where higher insertion losses might be an issue. However, return path is not available.

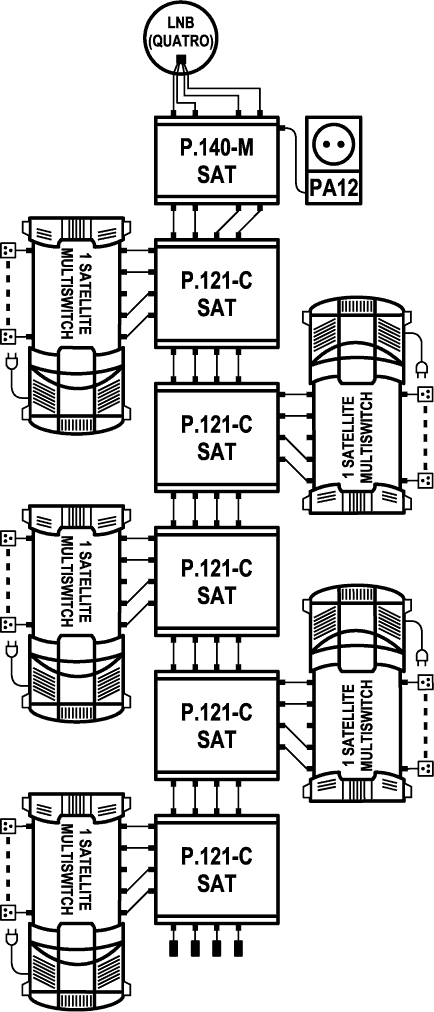

Internal satellite amplifiers are fed from its tap outputs, terrestrial amplifier is fed either from its own tap output or from adjacent Sat tap output, depending on what DC voltage is higher. For continued operation of terrestrial amplifier, attached multiswitch must always supply DC voltage either on its terr. or on its satellite inputs. For other installation notes please see section P.121-A.
